1. Remove the liftgate upper trim.

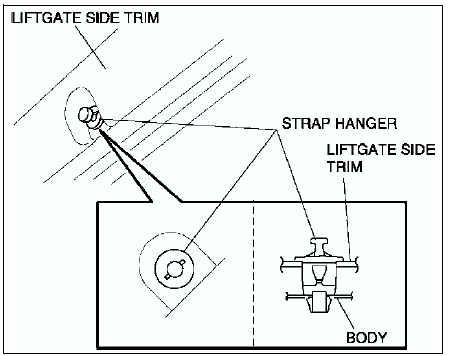

2. Position the strap hanger as shown in the figure.

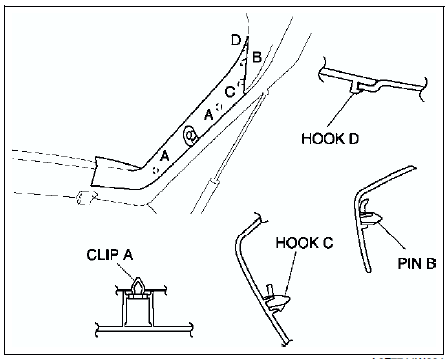

3. Pull the liftgate side trim toward you, then disengage clips A, pin B and the strap hanger from the body and pin B, hook C, D from the liftgate lower trim.


4. Remove the liftgate side trim.

5. Remove the hanger strap from the liftgate side trim.

6. Install in the reverse order of removal.

Liftgate upper trim removal/installation
1. Pull the liftgate upper trim toward you, then disengage clips A, and pin B from the body. 2. Remove the liftgate upper trim. 3. Install in the reverse order of removal. ...

Liftgate lower trim removal/installation
1. Remove the liftgate upper trim. 2. Remove the liftgate side trim. 3. Pull the handle toward you, then remove the handle. 4. Pull the liftgate lower trim toward you, then disengage clips A, B a ...
