Mazda 6 Service Manual: Woofer inspection

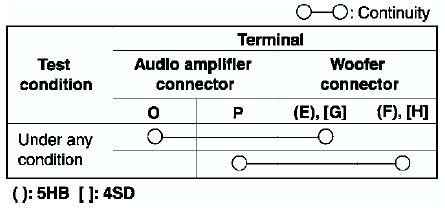

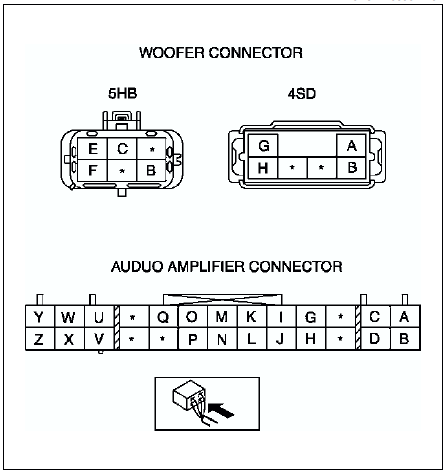

1. Inspect for continuity between the audio amplifier connector terminals and woofer connector terminals using an ohmmeter.
- If not as specified, replace the related wiring harnesses.
2. Verify that there is battery positive voltage at the woofer connector terminal A (4SD) or C (5HB) using a voltmeter.
- If not as specified, replace the related wiring haness.
3. Inspect continuity between the woofer connector terminal B and body ground using an ohmmeter.
- If not as specified, replace the related wiring harness.
- If as specified, replace the woofer.
Woofer removal/installation
4SD
1. Disconnect the negative battery cable.
2. Remove the rear package trim.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5HB
1. Disconnect th ...
Noise filter removal/installation
Brake Light Noise Filter
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
Rear Window Defroster Noise Filter ...
