Mazda 6 Service Manual: Joint shaft pre-inspection
1. Verify that the joint shaft is not twisted or cracked.
- Replace it as necessary.

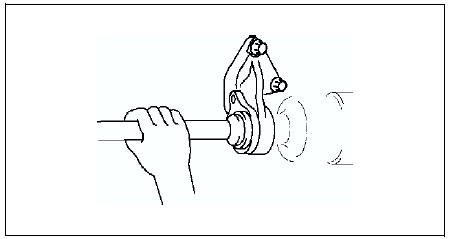

2. Turn the joint shaft by hand and verify that the bearing rotates smoothly and freely.
- Replace it as necessary.
