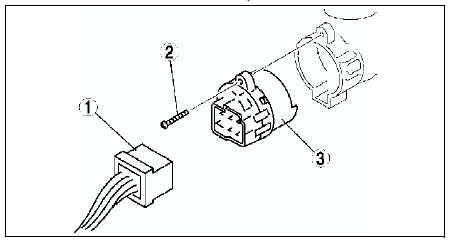

Mazda 6 Service Manual: Ignition switch removal/installation
1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Fuse block removal/installation
1. Disconnect the negative battery cable.
2. Remove the left-side front side trim. (See FRONT SIDE TRIM
REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the ...
Ignition switch inspection
1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION)
3. Disconnect the ignition switch connectors.
4. Inspect for continuity between the ign ...
