Mazda 6 Service Manual: Air mix actuator removal/installation
1. Disconnect the negative battery cable.
2. Remove the glove compartment.
3. Remove the car navigation unit. (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

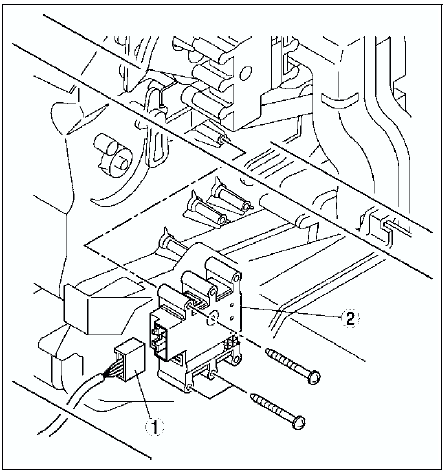

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
Air intake actuator inspection
1. Connect battery positive voltage to terminal D or F and ground to terminal
F or D of the air intake actuator.
2. Verify that the air intake actuator operates as shown below.
If not as specif ...
Air mix actuator inspection
1. Connect battery positive voltage to terminal D or F and ground to terminal
F or D of the air mix actuator.
2. Verify that the air mix actuator operates as shown below.
If not as specified, r ...
