Mazda 6 Service Manual: Center roof antenna inspection
1. Verify that there is no continuity between the center roof antenna terminals A and C using an ohmmeter.

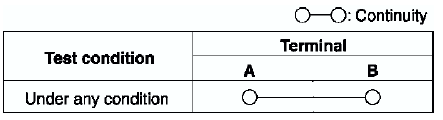

2. Inspect for continuity between the center roof antenna terminals using an ohmmeter.
- If not as specified, replace the center roof antenna.
Center roof antenna removal/installation
1. Disconnect the negative battery cable.
2. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of remova ...
Glass antenna inspection
1. Inspect the glass antenna for damage visually.
2. Inspect for continuity between the glass antenna terminals using an
ohmmeter.
If not as specified, repair the glass antenna. (See FILAMENT R ...
