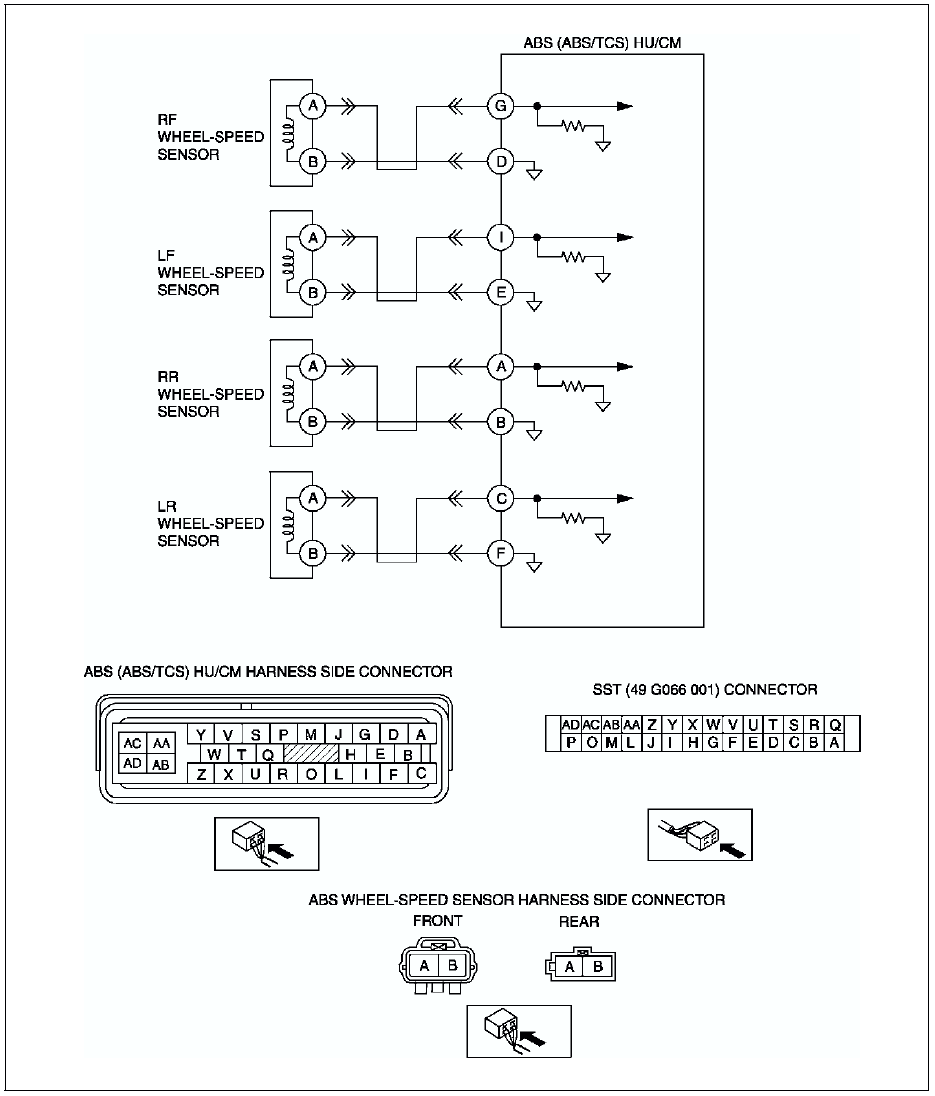

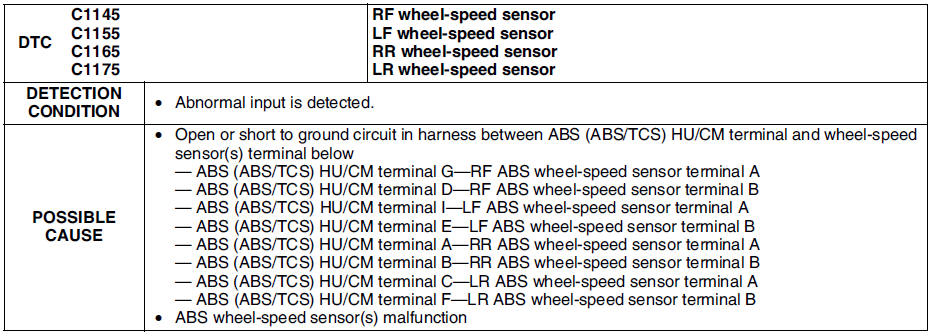

Mazda 6 Service Manual: Dtc c1145, c1155, c1165, c1175
Caution
- When attaching the tester lead to the ABS (ABS/TCS) HU/CM harness connector, the SST (49 G066 001) must be used. (See ABS (ABS/TCS) HU/CM INSPECTION.)

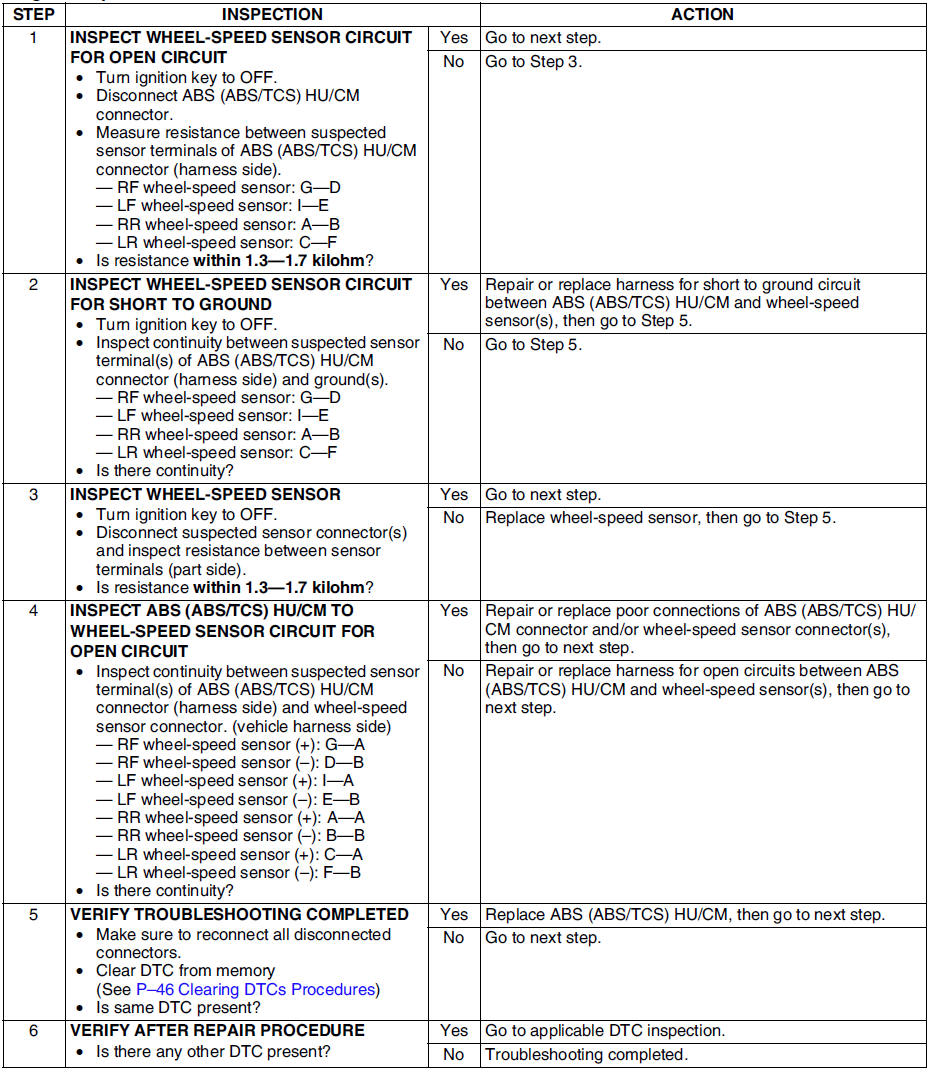

Diagnostic procedure
Dtc c1140
Caution
When attaching the tester lead to the ABS (ABS/TCS) HU/CM harness
connector, the SST (49 G066 001) must be used. (See ABS (ABS/TCS) HU/CM
INSPECTION.)
Diagnostic procedure
...
Dtc c1148, c1158, c1168, c1178, c1233, c1234, c1235, c1236
Caution
When attaching the tester lead to the ABS (ABS/TCS) HU/CM harness
connector, the SST (49 G066 001) must be used. (See ABS (ABS/TCS) HU/CM
INSPECTION.)
Diagnostic procedure
...
